Create Swift Custom DB Listing Form

Login to Swift App Design Studio

Login in to the App Design Studio using your Swift admin account

Select the Application for Custom DB Listing Form

Click the Application you want to create the new Custom DB Listing Form for. This will open up the App Designer

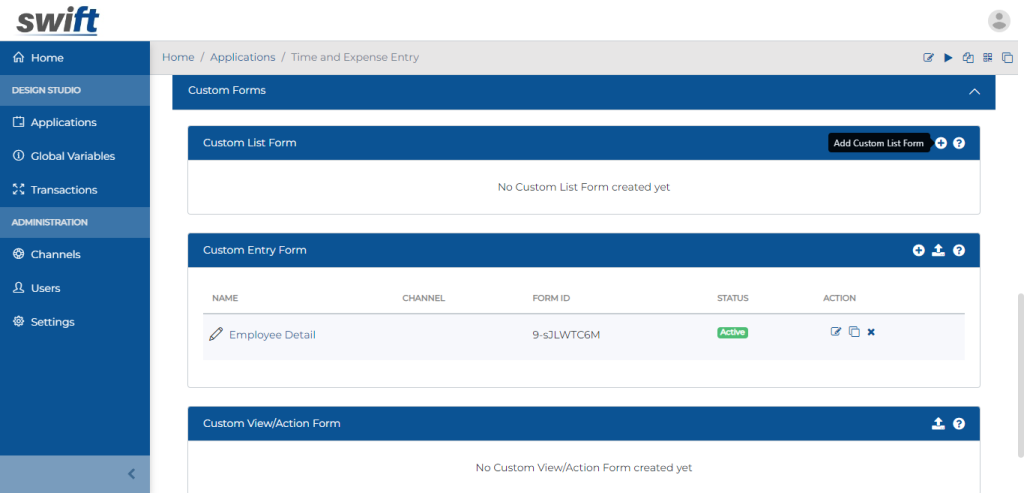

Create the New List Form

Scroll down to the Custom List form and Click the
 button to create the New List Form

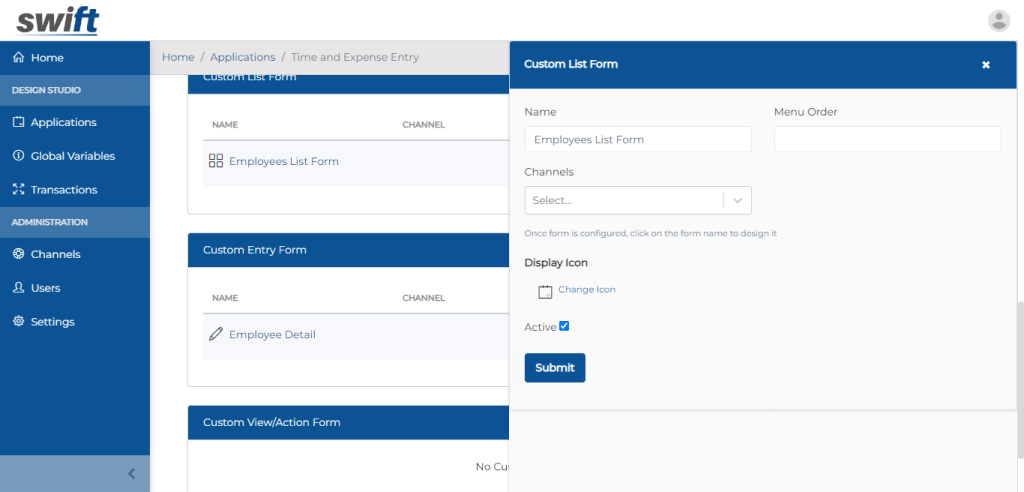

Name the New List Form

Enter the Name of the New List Form and Click Submit

Edit the Created Custom List Form

Now edit the created list form from the Action column

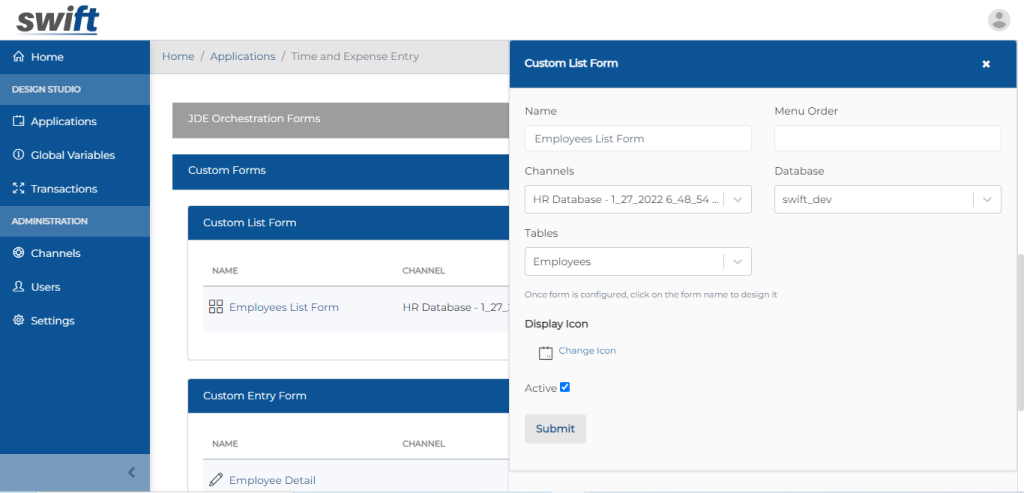

Select the Channel

Select the Channel, Table, and Database (configured in the ‘Channels’ panel ) from the drop-down menu.

Save the Settings and your Custom List Form is now ready to be used!

Now click on the Custom List Form Title to customize your form according to your needs.

Search Criteria:

From this section, you can add the search fields & select the Labels from the Dropdown.

These search filters will be shown in the End-User app.

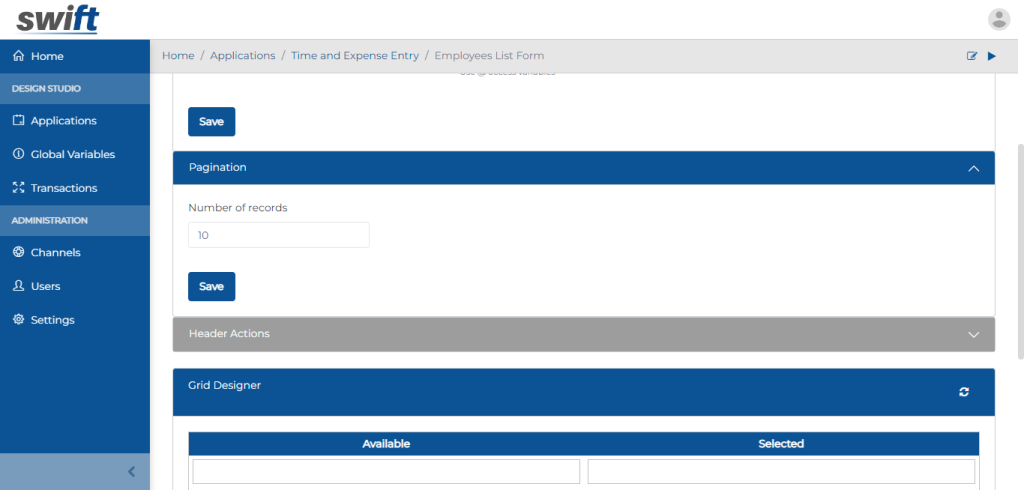

Pagination:

Number of Records allows you to set the limit of rows for pagination

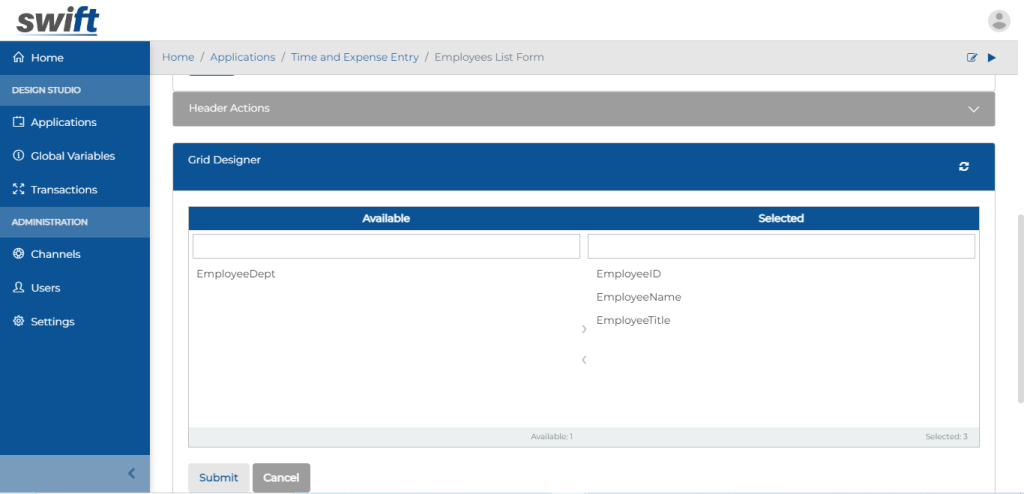

Grid Designer:

Here you can select the available Columns to be shown in the end-user app.

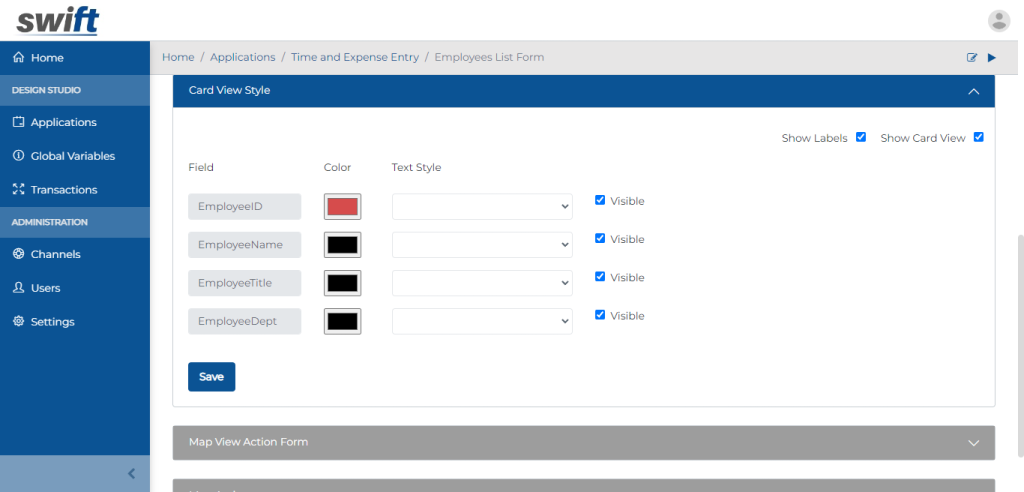

Card View Style:

Here you can select the color and the text style of the label to be shown in the end-user app

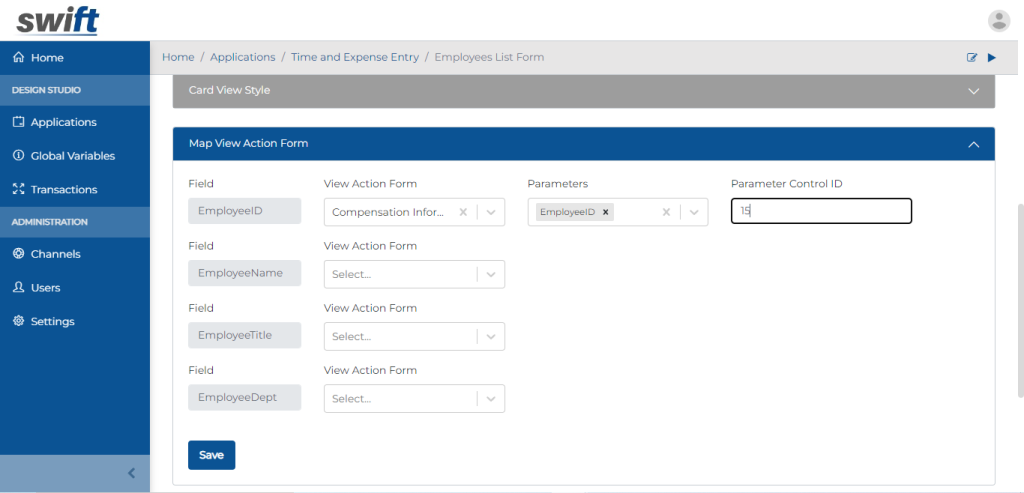

Map View Form:

It allows you to map the columns in your custom listing form with the view Action forms.

      Next Steps:

•  Invoke JDE Actions via Action Button
•  Invoke JDE Orchestration via Action Button
•  Invoke External REST API via Action Button
